Three-way Ball Valve
发布时间：2022-06-16
点击人数：493次
INQUIRY NOW
|
Product Detail
Three-way Ball Valve

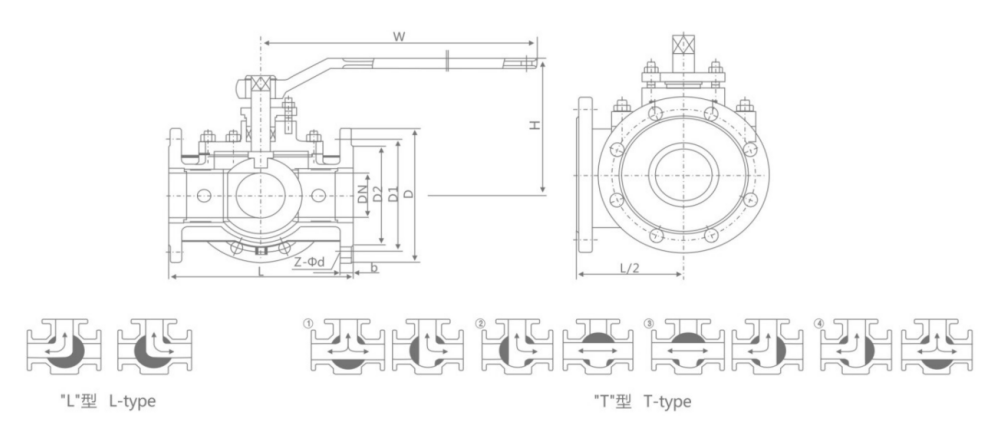

Main external and connection dimension
|
Nominal SIZE
(DN) |
Main External and Connection Dimensions(mm)
1.6Mpa Carbon steel/SS304/SS316 |
WT(kg) |
|||||||
|
L |
D |
D1 |
D2 |
b |
Z-Φd |
H |
W |
||
|
15 |
150 |
95 |
65 |
45 |
14 |
4-Φ14 |
95 |
140 |
4 |
|
20 |
160 |
105 |
75 |
55 |
14 |
4-Φ14 |
105 |
160 |
8 |
|
25 |
180 |
115 |
85 |
65 |
14 |
4-Φ14 |
113 |
180 |
7 |
|
32 |
200 |
135 |
100 |
78 |
16 |
4-Φ18 |
135 |
250 |
12 |
|
40 |
220 |
145 |
110 |
85 |
16 |
4-Φ18 |
142 |
300 |
15 |
|
50 |
240 |
160 |
125 |
100 |
16 |
4-Φ18 |
165 |
350 |
20 |
|
65 |
260 |
180 |
145 |
120 |
18 |
4-Φ18 |
175 |
350 |
25 |
|
80 |
280 |
195 |
160 |
135 |
20 |
8-Φ18 |
190 |
400 |
36 |
|
100 |
320 |
215 |
180 |
155 |
20 |
8-Φ18 |
225 |
500 |
51 |
|
125 |
380 |
245 |
210 |
185 |
22 |
8-Φ18 |
245 |
600 |
77 |
|
150 |
440 |
280 |
240 |
210 |
24 |
8-Φ23 |
265 |
800 |
108 |
|
200 |
550 |
335 |
295 |
265 |
26 |
12-Φ23 |
305 |
800 |
126 |
|
250 |
670 |
405 |
355 |
320 |
30 |
12-Φ25 |
370 |
1300 |
185 |
Main external and connection dimension
|
Nominal SIZE
(DN) |
Main External and Connection Dimensions(mm)
2.5Mpa Carbon steel/SS304/SS316 |
WT(kg) |
|||||||
|
L |
D |
D1 |
D2 |
b |
Z-Φd |
H |
W |
||
|
15 |
150 |
95 |
65 |
45 |
16 |
4-Φ14 |
95 |
100 |
4 |
|
20 |
160 |
105 |
75 |
55 |
16 |
4-Φ14 |
105 |
160 |
5 |
|
25 |
180 |
115 |
85 |
65 |
16 |
4-Φ14 |
113 |
160 |
8 |
|
32 |
200 |
135 |
100 |
78 |
18 |
4-Φ18 |
135 |
250 |
13 |
|
40 |
220 |
145 |
110 |
85 |
18 |
4-Φ18 |
142 |
250 |
19 |
|
50 |
240 |
160 |
125 |
100 |
20 |
4-Φ18 |
154 |
350 |
27 |
|
65 |
260 |
180 |
145 |
120 |
22 |
8-Φ18 |
175 |
350 |
33 |
|
80 |
280 |
195 |
160 |
135 |
22 |
8-Φ18 |
190 |
450 |
40 |
|
100 |
320 |
230 |
190 |
160 |
24 |
8-Φ23 |
225 |
450 |
53 |
|
125 |
380 |
270 |
220 |
188 |
28 |
8-Φ25 |
245 |
600 |
86 |
|
150 |
440 |
300 |
250 |
218 |
30 |
8-Φ25 |
265 |
800 |
113 |
|
200 |
550 |
360 |
310 |
278 |
34 |
12-Φ25 |
305 |
1200 |
133 |
|
250 |
670 |
425 |
370 |
332 |
36 |
12-Φ30 |
370 |
1400 |
219 |
