JIS Flange Ball Valve
发布时间：2022-05-20
点击人数：420次
INQUIRY NOW
|
Product Detail
JIS Ball Valve
Execution Standard
|
Design Standard: |
Face to Face |
Flange End |
Pressure-Temp. |
Test&Check |
|
BS5351 |
JIS B2002 |
JIS B2212 B2214 |
JIS B2201 |
JIS B2003 |

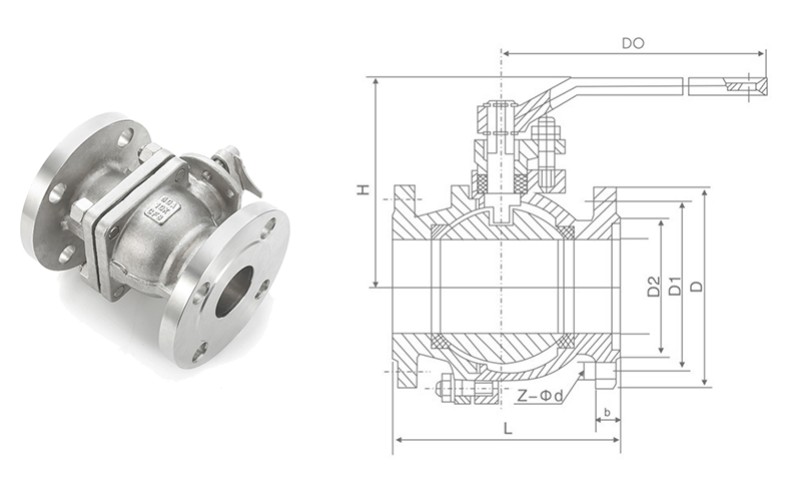

Main Size
|
DN |
10K |
||||||||
|
mm |
In |
L |
D |
D1 |
D2 |
B |
Z-Φd |
H |
DO |
|
15 |
1/2” |
108 |
95 |
70 |
52 |
12 |
4-Φ15 |
59 |
130 |
|
20 |
3/4” |
117 |
100 |
75 |
58 |
14 |
4-Φ15 |
63 |
130 |
|
25 |
1” |
127 |
125 |
90 |
70 |
14 |
4-Φ19 |
75 |
160 |
|
32 |
1-1/4” |
140 |
135 |
100 |
80 |
16 |
4-Φ19 |
75 |
160 |
|
40 |
1-1/2” |
165 |
140 |
105 |
85 |
16 |
4-Φ19 |
95 |
230 |
|
50 |
2” |
178 |
155 |
120 |
100 |
16 |
4-Φ19 |
107 |
230 |
|
65 |
2-1/2” |
190 |
175 |
140 |
120 |
18 |
4-Φ19 |
142 |
400 |
|
80 |
3” |
203 |
185 |
150 |
130 |
18 |
8-Φ19 |
152 |
400 |
|
100 |
4” |
229 |
210 |
175 |
155 |
18 |
8-Φ19 |
178 |
700 |
|
125 |
5” |
356 |
250 |
210 |
185 |
20 |
8-Φ23 |
252 |
1100 |
|
150 |
6” |
394 |
280 |
240 |
215 |
22 |
8-Φ23 |
272 |
1100 |
|
200 |
8” |
457 |
330 |
290 |
265 |
22 |
12-Φ23 |
342 |
1500 |
|
DN |
20K |
||||||||
|
15 |
1/2” |
140 |
95 |
70 |
52 |
14 |
4-Φ15 |
59 |
130 |
|
20 |
3/4” |
152 |
100 |
75 |
58 |
16 |
4-Φ15 |
63 |
130 |
|
25 |
1” |
165 |
125 |
90 |
70 |
16 |
4-Φ19 |
75 |
160 |
|
32 |
1-1/4” |
178 |
135 |
100 |
80 |
18 |
4-Φ19 |
75 |
160 |
|
40 |
1-1/2” |
190.5 |
140 |
105 |
85 |
18 |
4-Φ19 |
95 |
230 |
|
50 |
2” |
216 |
155 |
120 |
100 |
18 |
8-Φ19 |
107 |
230 |
|
65 |
2-1/2” |
241 |
175 |
140 |
120 |
20 |
8-Φ19 |
142 |
400 |
|
80 |
3” |
283 |
200 |
160 |
135 |
22 |
8-Φ22 |
152 |
400 |
|
100 |
4” |
305 |
225 |
185 |
160 |
24 |
8-Φ22 |
178 |
700 |
|
125 |
5” |
381 |
270 |
225 |
195 |
26 |
8-Φ22 |
252 |
1100 |
|
150 |
6” |
403 |
305 |
260 |
230 |
28 |
12-Φ22 |
272 |
1100 |
|
200 |
8” |
502 |
350 |
305 |
275 |
30 |
12-Φ25 |
342 |
1500 |
