Flanged EPDM Seal Butterfly Valve
发布时间：2022-05-20
点击人数：548次
INQUIRY NOW
|
Product Detail
Double Flanged Butterfly valve
Max working pressure
DN50-DN300 16Bar
Flange PN10 PN10 PN16 150LB JIS 10K
DN350-DN1100 10Bar
Flange PN10 PN16 150LB JIS 10K
DN1200-DN2000 6Bar
Flange PN10 PN16 150LB JIS 10K
Design
EN593 API 609 BS5155 EN1092 ISO5211
Face to Face
DIN558-1 API609 DIN3202 ISO5752 BS5155
Testing
EN 12266-1 ISO5208 API598
Body
|
Material |
References standard |
Coating |
|
Cast iron |
GG20 GG25 A126 |
Epoxy Ral 5005 |
|
Ductile iron |
GGG40 GGG45 GGG50 A536 A395 |
Epoxy Ral 5005 |
|
Carbon steel |
WCB WCC LCC LCB |
|
|
Stainless steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Aluminuim-bronze |
|
|
Disc
|
Material |
References standard |
Standard Coating |
|
Cast iron |
GGG40 GGG45 GGG50 A536 |
Nickel Brass-Nikle |
|
Ductile iron |
WCB WCC LCC LCB |
|
|
Carbon steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Stainless steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Aluminuim-bronze |
C95400 C95500 C95800 |
|

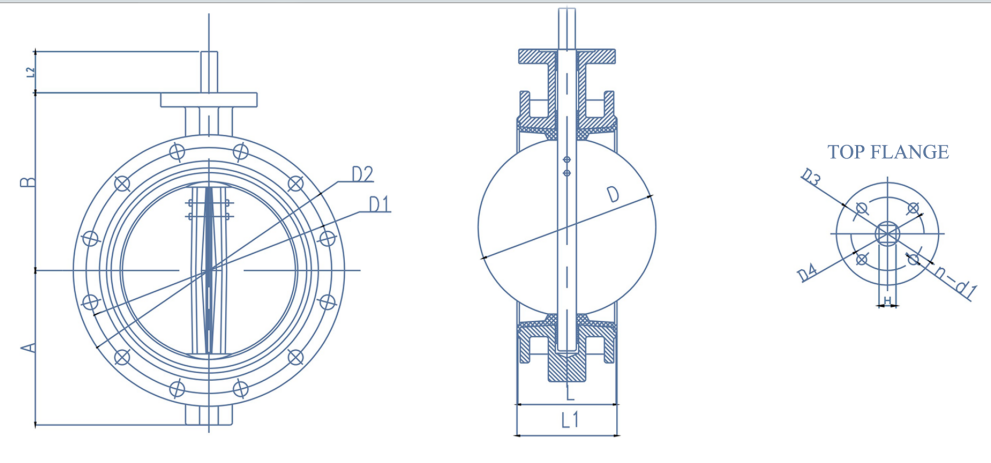

Flange Butterfly Valve Drawing (DN50-DN350)
Outline Dimensions
|
SIZE |
A |
B |
D |
L |
ISO5211 |
D3 |
D4 |
n-d1 |
L2 |
H×H |
|
2” |
80 |
110 |
52.9 |
108 |
F07 |
90 |
70 |
4-10 |
14 |
11×11 |
|
2.5” |
82 |
137 |
64.5 |
112 |
F07 |
90 |
70 |
4-10 |
14 |
11×11 |
|
3” |
98 |
146 |
78.8 |
114 |
F07 |
90 |
70 |
4-10 |
14 |
11×11 |
|
4” |
115 |
155 |
104 |
127 |
F07 |
90 |
70 |
4-10 |
14 |
11×11 |
|
5” |
115 |
171 |
123.3 |
140 |
F07 |
90 |
70 |
4-10 |
17 |
14 |
|
6” |
142 |
182 |
155.6 |
140 |
F07 |
90 |
70 |
4-10 |
17 |
17 |
|
8” |
176 |
212 |
202.5 |
152 |
F10 |
125 |
102 |
4-12 |
22 |
17 |
|
10” |
210 |
250 |
250.5 |
165 |
F10 |
125 |
102 |
4-12 |
22 |
22 |
|
12” |
242 |
278 |
301.5 |
178 |
F10 |
125 |
102 |
4-12 |
22 |
22 |
|
14” |
254 |
313 |
333.3 |
190 |
F10 |
125 |
102 |
4-12 |
22 |
22 |
Flange Butterfly Valve Drawing (DN400-DN600)
|
SIZE |
A |
B |
D |
L |
ISO5211 |
D3 |
D4 |
n-d1 |
H×H |
L3 |
|
16” |
298 |
349 |
389.6 |
216 |
F14 |
175 |
140 |
4-18 |
27×27 |
36 |
|
18” |
330 |
380 |
440.5 |
222 |
F14 |
175 |
140 |
4-18 |
27×27 |
36 |
|
20” |
348 |
445 |
491.6 |
229 |
F14 |
175 |
140 |
4-18 |
36×36 |
36 |
|
24” |
430 |
520 |
592.5 |
267 |
F16 |
210 |
165 |
4-22 |
36×36 |
46 |
Flange Butterfly Valve Drawing (DN700-DN2000)
Outline Dimensions
|
SIZE |
A |
B |
D |
L |
ISO5211 |
D3 |
D4 |
n-d |
J |
|
28” |
468 |
565 |
695 |
292 |
F25 |
300 |
254 |
8-18 |
18 |
|
32” |
525 |
620 |
794.7 |
318 |
F25 |
300 |
254 |
8-18 |
18 |
|
36” |
609 |
695 |
864.7 |
330 |
F25 |
300 |
254 |
8-18 |
20 |
|
40” |
652 |
739 |
965 |
410 |
F25 |
300 |
254 |
8-18 |
22 |
|
48” |
782 |
928 |
1160 |
470 |
F30 |
350 |
298 |
8-22 |
28 |
|
52” |
890 |
990 |
1275 |
490 |
F35 |
415 |
356 |
8-32 |
32 |
|
56” |
920 |
1018 |
1393.7 |
530 |
F35 |
415 |
356 |
8-32 |
36 |
|
60” |
925 |
1050 |
1500 |
570 |
F35 |
415 |
356 |
8-32 |
40 |
|
64” |
1040 |
1150 |
1587 |
600 |
F35 |
415 |
356 |
8-32 |
40 |
|
72” |
1146 |
1260 |
1790 |
670 |
F48 |
560 |
483 |
12-38 |
45 |
|
80” |
1340 |
1363 |
2001.5 |
760 |
F48 |
560 |
483 |
12-38 |
45 |
