Flange U-type Butterfly Valve
发布时间：2022-05-20
点击人数：478次
INQUIRY NOW
|
Product Detail
U-section Flange Butterfly Valve
Max working pressure
DN350-DN1200 10Bar
Flange PN6 PN10 PN16 150LB JIS 5K 10K AS"D""E"
Design
EN593 API 609 BS5155 EN1092 ISO5211
Face to Face
DIN558-1 API609 DIN3202 ISO5752 BS5155
Testing
EN 12266-1 ISO5208 API598
Body
|
Material |
References standard |
Coating |
|
Cast iron |
GG20 GG25 A126 |
Epoxy Ral 5005 |
|
Ductile iron |
GGG40 GGG45 GGG50 A536 A395 |
Epoxy Ral 5005 |
|
Carbon steel |
WCB WCC LCC LCB |
Epoxy Ral 7011 |
|
Stainless steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Aluminuim-bronze |
C95400 C95500 C95800 |
|

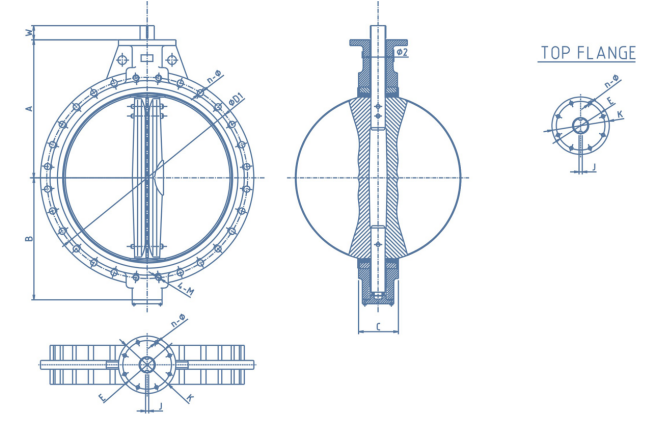

U-section Flange Butterfly Valve Drawing (DN700-DN1200)
Outline Dimensions
|
SIZE |
A |
B |
C |
Φ2 |
ISO5211 |
K |
E |
n-Φ |
J |
W |
|
DN700 |
631 |
511 |
165 |
63.35 |
F25 |
300 |
254 |
8-18 |
18 |
110 |
|
DN800 |
671 |
580 |
190 |
63.35 |
F25 |
300 |
254 |
8-18 |
18 |
110 |
|
DN900 |
720 |
636 |
203 |
75 |
F25 |
300 |
254 |
8-18 |
20 |
110 |
|
DN1000 |
805 |
709 |
216 |
85 |
F25 |
300 |
254 |
8-18 |
22 |
110 |
|
DN1200 |
942 |
846 |
254 |
105 |
F30 |
350 |
298 |
8-22 |
28 |
130 |
