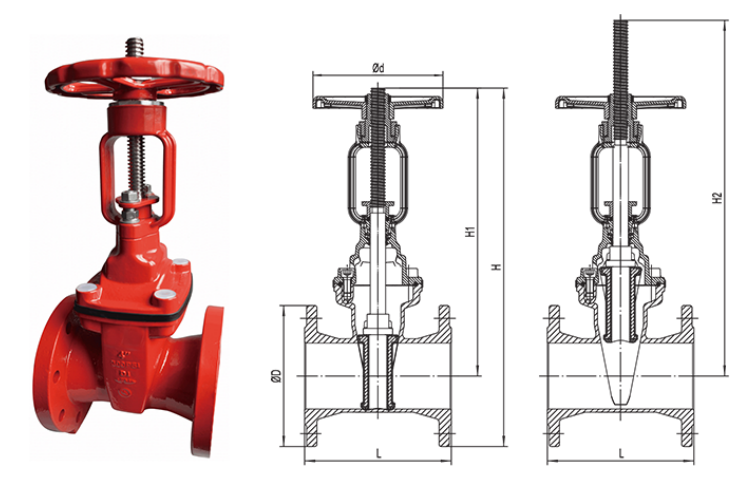

BS5163 Flanged Resilient Seated OS&Y Gate Valve
Technical data
Sizs:DN50-DN300
Working pressure: PN16/PN25
Valve standard:BS5163
Flange standard: EN1092-2
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Wedge |
Ductile iron+EPDM |
|
Stem nut |
Bronze |
|
Stem |
SS431 or SS304,SS316,bronze |
|
Bonnet |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Sealing Ring |
EPDM |
|
Upper cover |
Ductile iron |
|
Sliding disc |
Bronze |
|
Screw |
Carbon steel with hot galvanization |
|
O-rings |
EPDM |
|
Hand wheel |
Ductile iron |
|
Dimensions |
Pressure rating |
Size(mm) |
||||||
|
DN |
Inch |
PN |
ΦD |
L |
H1 |
H2 |
H |
Φd |
|
50 |
2 |
16 |
165 |
178 |
358.5 |
420.5 |
441 |
203 |
|
25 |
216 |
|||||||
|
65 |
2.5 |
16 |
185 |
190 |
359.5 |
429.5 |
452 |
203 |
|
25 |
241 |
|||||||
|
80 |
3 |
16 |
200 |
203 |
378 |
462 |
478 |
203 |
|
25 |
283 |
|||||||
|
100 |
4 |
16 |
220 |
229 |
449.5 |
553 |
559.5 |
203 |
|
25 |
235 |
305 |
567 |
|||||
|
125 |
5 |
16 |
250 |
254 |
549.5 |
677 |
674.5 |
203 |
|
25 |
270 |
381 |
684.5 |
|||||
|
150 |
6 |
16 |
285 |
267 |
591.5 |
747 |
734 |
300 |
|
25 |
300 |
403 |
741.5 |
|||||
|
200 |
8 |
16 |
340 |
292 |
735.5 |
938 |
905.5 |
330 |
|
25 |
360 |
419 |
915.5 |
|||||
|
250 |
10 |
16 |
400 |
330 |
900.5 |
1161 |
1100.5 |
406 |
|
25 |
425 |
457 |
1113 |
|||||
|
300 |
12 |
16 |
455 |
356 |
1045.5 |
1353 |
1273 |
406 |
|
25 |
485 |
502 |
1288 |
|||||
