Rising stem Grooved Gate Valve
发布时间：2022-05-19
点击人数：498次
INQUIRY NOW
|
Product Detail

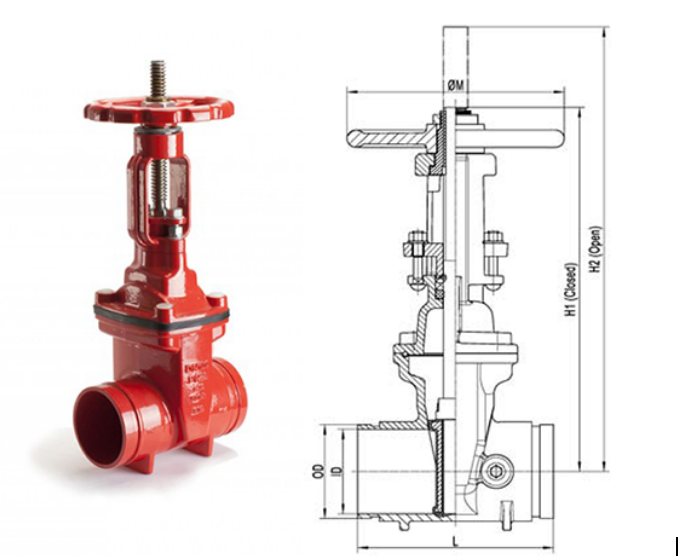

Grooved Resilient Seated OS&Y Gate Valve
Technical data
Sizs: 2”~12”
Working pressure: 362PSI
Valve standard: AWWA C515
Grooved standard: AWWA C606
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Wedge |
Ductile iron+EPDM |
|
Stem nut |
Bronze |
|
Stem |
SS431 or SS304,SS316,bronze |
|
Bonnet |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Sealing Ring |
EPDM |
|
Yoke |
Ductile iron |
|
Sliding disc |
Bronze |
|
Screw |
Carbon steel with hot galvanization |
|
O-rings |
EPDM |
|
Hand wheel |
Ductile iron |
|
SIZE
Inch |
OUTLINE(Inch) |
END GROOVED(Inch) |
||||
|
L |
H1 |
H2 |
M |
OD |
ID |
|
|
2 |
7 |
13.46 |
15.67 |
7 |
2.37 |
2.09 |
|
2.5 |
7.5 |
13.11 |
15.79 |
7 |
2.87 |
2.48 |
|
3 |
8 |
14.89 |
18.23 |
7 |
3.50 |
3.07 |
|
4 |
9 |
17.46 |
21.63 |
10 |
4.50 |
4.06 |
|
5 |
10 |
20.39 |
25.63 |
10 |
5.56 |
5.04 |
|
6 |
10.5 |
23.29 |
29.59 |
12 |
6.63 |
6.10 |
|
8 |
11.5 |
28.78 |
37.01 |
14 |
8.63 |
8.03 |
|
10 |
13 |
35.04 |
45.28 |
16 |
10.75 |
10.04 |
|
12 |
14 |
40.61 |
52.78 |
18 |
12.75 |
11.97 |
