Gate Valve for Joint PE Pipe
发布时间：2022-05-19
点击人数：477次
INQUIRY NOW
|
Product Detail

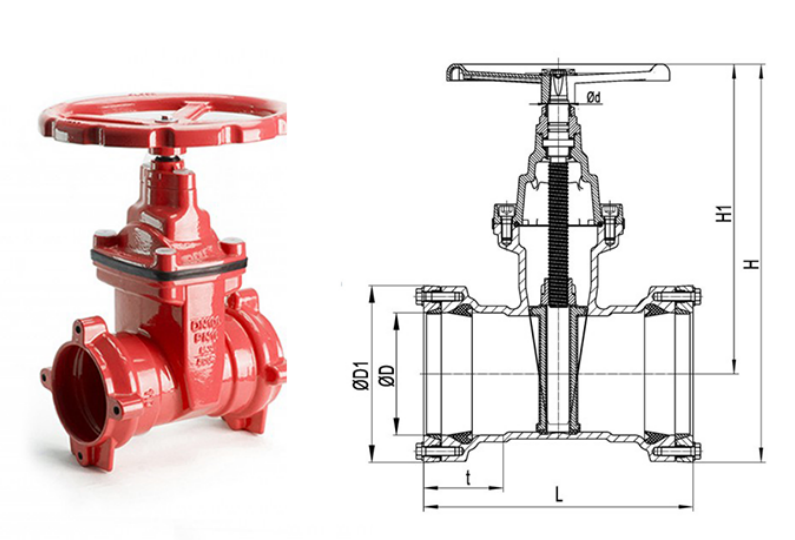

Resilient seated NRS gate valve with PE connection
Technical data
Sizs: DN50~DN300
Working pressure: PN10/PN16
Valve standard: BS5163
Flange standard: EN1092-2
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Wedge |
Ductile iron+EPDM |
|
Stem nut |
Bronze |
|
Stem |
SS431 or SS304,SS316,bronze |
|
Bonnet |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Sealing Ring |
EPDM |
|
Upper cover |
Ductile iron |
|
Sliding disc |
Bronze |
|
Screw |
Carbon steel with hot galvanization |
|
O-rings |
EPDM |
|
Hand wheel |
Ductile iron |
|
Grip ring |
HPb59-1 |
|
Rock ring |
Ductile iron |
|
Dimensions |
Pressure rating |
Size(mm) |
|||||||
|
DN |
Inch |
PN |
ΦD |
ΦD1 |
L |
t |
H1 |
H |
Φd |
|
50 |
2 |
PN10/16 |
63 |
125 |
225 |
85 |
256 |
318.5 |
22 |
|
65 |
2.5 |
PN10/16 |
75 |
139 |
235 |
85 |
256 |
325.5 |
22 |
|
80 |
3 |
PN10/16 |
90 |
152 |
245 |
90 |
273.5 |
349.5 |
22 |
|
100 |
4 |
PN10/16 |
110 |
178 |
258 |
90 |
323.5 |
412.5 |
24 |
|
125 |
200 |
258 |
90 |
323.5 |
423.5 |
||||
|
125 |
5 |
PN10/16 |
125 |
200 |
285 |
90 |
376 |
476 |
28 |
|
140 |
214 |
285 |
95 |
376 |
483 |
||||
|
150 |
6 |
PN10/16 |
160 |
233 |
319 |
110 |
423.5 |
540 |
28 |
|
180 |
255 |
329 |
115 |
423.5 |
551 |
||||
|
200 |
8 |
PN10/16 |
200 |
285 |
370 |
130 |
530.5 |
673 |
32 |
|
225 |
315 |
372 |
130 |
530.5 |
688 |
||||
|
250 |
10 |
PN10/16 |
250 |
339 |
411 |
150 |
645 |
814.5 |
36 |
|
280 |
368 |
414 |
150 |
645 |
829 |
||||
|
300 |
12 |
PN10/16 |
315 |
425 |
500 |
175 |
725.5 |
938 |
40 |
