AWWA C515 Flanged Resilient Seated NRS Gate Valve with Indicator Post
发布时间：2022-05-19
点击人数：603次
INQUIRY NOW
|
Product Detail
AWWA C515 Flanged Resilient Seated NRS Gate Valve with Indicator Post
Technical data
Sizs: 2”~12”
Working pressure: 175PSI, 300 PSI
Valve standard: AWWA C515
Flange standard: ASME-B16.1 Class125
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Wedge |
Ductile iron+EPDM |
|
Stem nut |
Bronze |
|
Stem |
SS431 or SS304,SS316,bronze |
|
Bonnet |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Sealing Ring |
EPDM |
|
Indicator Post Flange |
Ductile iron |
|
Sliding disc |
Bronze |
|
Screw |
Carbon steel with hot galvanization |
|
O-rings |
EPDM |
|
Hand wheel |
Ductile iron |
|

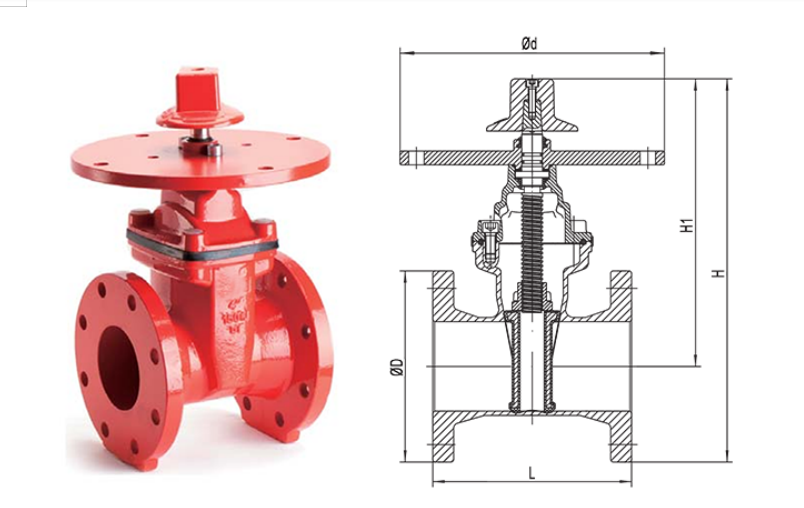

Dimensions |
Pressure rating |
Size(mm) |
|||||
|
DN |
Inch |
PSI |
ΦD |
L |
H1 |
H |
Φd |
|
100 |
4 |
175 |
229 |
229 |
332.5 |
449 |
305 |
|
300 |
|||||||
|
125 |
5 |
175 |
254 |
254 |
385 |
512 |
305 |
|
300 |
|||||||
|
150 |
6 |
175 |
279 |
267 |
432.5 |
572 |
305
|
|
300 |
|||||||
|
200 |
8 |
175 |
343 |
292 |
527 |
698.5 |
305 |
|
300 |
|||||||
|
250 |
10 |
175 |
406 |
330 |
645 |
848 |
305 |
|
300 |
|||||||
|
300 |
12 |
175 |
483 |
356 |
722 |
963.5 |
305 |
|
300 |
|||||||
