Grooved check valve
发布时间：2022-05-19
点击人数：574次
INQUIRY NOW
|
Product Detail
Grooved Swing Check Valve
Technical data
Sizs: 2”-12”
Working pressure: 362PSI
Grooved standard: AWWA C606
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Seat Ring |
Bronze |
|
Disc |
Ductile iron+EPDM |
|
Clapper Arm |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Bonnet |
Ductile iron |
|
Hinge Pin |
SS304 |
|
Hinge Bushing |
Bronze |
|
Hinge Plug |
SS304 |
|

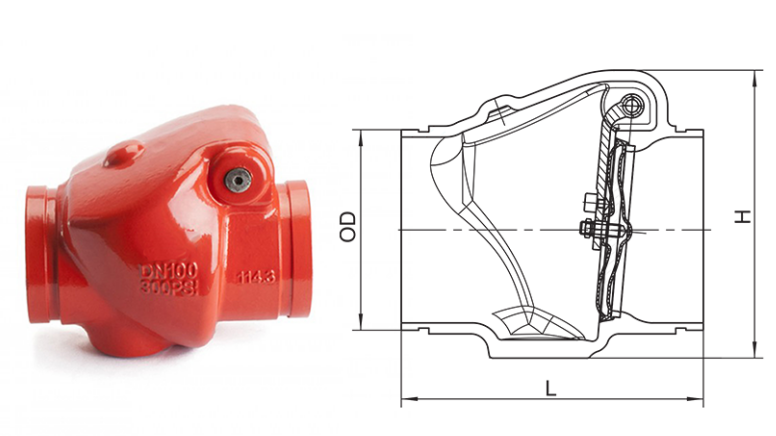

Dimensions |
Pressure rating |
Size(mm) |
|||
|
DN |
Inch |
PSI |
ΦD |
L |
H |
|
50 |
2 |
362 |
60.3 |
167 |
122.5 |
|
65 |
2.5 |
362 |
73 |
180 |
136.5 |
|
76.1 |
|||||
|
80 |
3 |
362 |
88.9 |
198 |
165.5 |
|
100 |
4 |
362 |
114.3 |
229 |
193.5 |
|
125 |
5 |
362 |
139.7 |
254 |
235.5 |
|
141.3 |
|||||
|
150 |
6 |
362 |
165.1 |
272 |
252 |
|
168.3 |
|||||
|
200 |
8 |
362 |
219.1 |
330 |
314.5 |
