Flange check valve
发布时间：2022-05-19
点击人数：503次
INQUIRY NOW
|
Product Detail
Flanged Swing Check Valve
Technical data
Sizs: 2”-12”
Working pressure: 300PSI
Valve standard: AWWA C508
Flange standard: ASME-B16.1 Class125
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Seat Ring |
Bronze |
|
Disc Sealing Ring |
EPDM |
|
Disc |
Ductile iron |
|
Clapper Arm |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Bonnet |
Ductile iron |
|
Hinge Pin |
SS304 |
|
Hinge Bushing |
Bronze |
|
Hinge Plug |
SS304 |
|

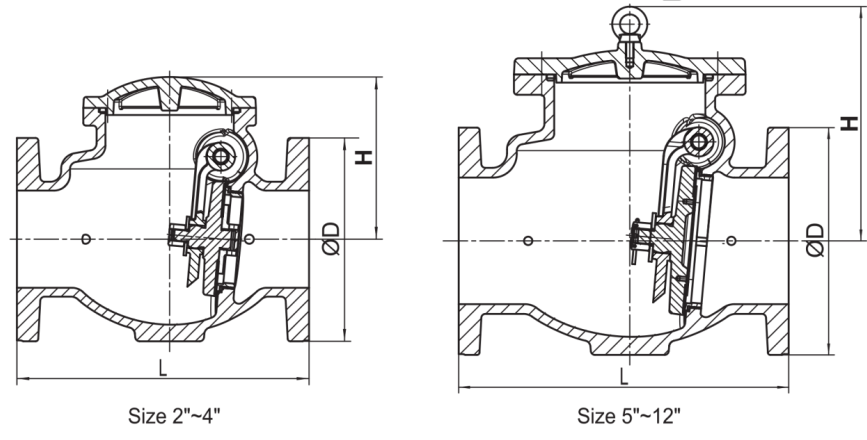

Dimensions |
Pressure rating |
Size(mm) |
|||
|
DN |
Inch |
PSI |
ΦD |
L |
H |
|
50 |
2 |
300 |
152 |
203 |
125 |
|
65 |
2.5 |
300 |
178 |
254 |
139 |
|
80 |
3 |
300 |
191 |
279 |
153 |
|
100 |
4 |
300 |
229 |
330 |
184 |
|
125 |
5 |
300 |
254 |
356 |
275 |
|
150 |
6 |
300 |
279 |
406 |
289 |
|
200 |
8 |
300 |
343 |
495 |
352 |
|
250 |
10 |
300 |
406 |
559 |
411 |
|
300 |
12 |
300 |
483 |
660 |
480 |
