Water Foot Valve
发布时间：2022-05-20
点击人数：442次
INQUIRY NOW
|
Product Detail

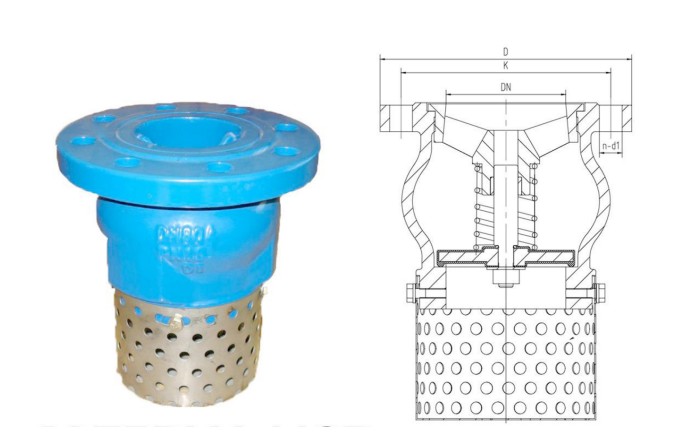

Foot Valve
APPLICATION
|
SIZE |
DN50-DN300 |
|
CLASS |
PN10/16 CL125/150 |
|
DESIGN |
BS5153 |
|
END FLANGE |
EN1092-2,ASME B16.1/16.42,AS4087 |
|
TESTS |
EN12266 |
MATERlAL LlST
|
STANDARD MATERIALS OF MAIN PARTS |
|||
|
ITEM |
PARTNAME |
MATERIAL |
STANDARD |
|
1 |
Screen |
Stainless Steel |
ASTM A959 |
|
2 |
Bolts |
C45E/1045/SS304 |
ASTM A959 |
|
3 |
Washers |
C45E/1045/SS304 |
ASTM A959 |
|
4 |
Body |
Ductile Iron |
DIN1693/BS EN1563 |
|
5 |
Disc |
EPDM+Carbon Steel |
ISO4633 |
|
6 |
Stem |
X20Cr13/420 |
EN10088-1/ASTM A959 |
|
7 |
Spring |
Stainless Steel |
ASTM A959 |
|
8 |
Screw |
C45E/1045/SS304 |
ASTM A959 |
|
9 |
Guide Sleeve |
CuZn39Pb1 |
EN12167 |
|
10 |
Guide Seat |
Ductile Iron |
DIN 1693/BS EN1563 |
|
11 |
Screw |
C45E/1045/SS304 |
ASTM A959 |

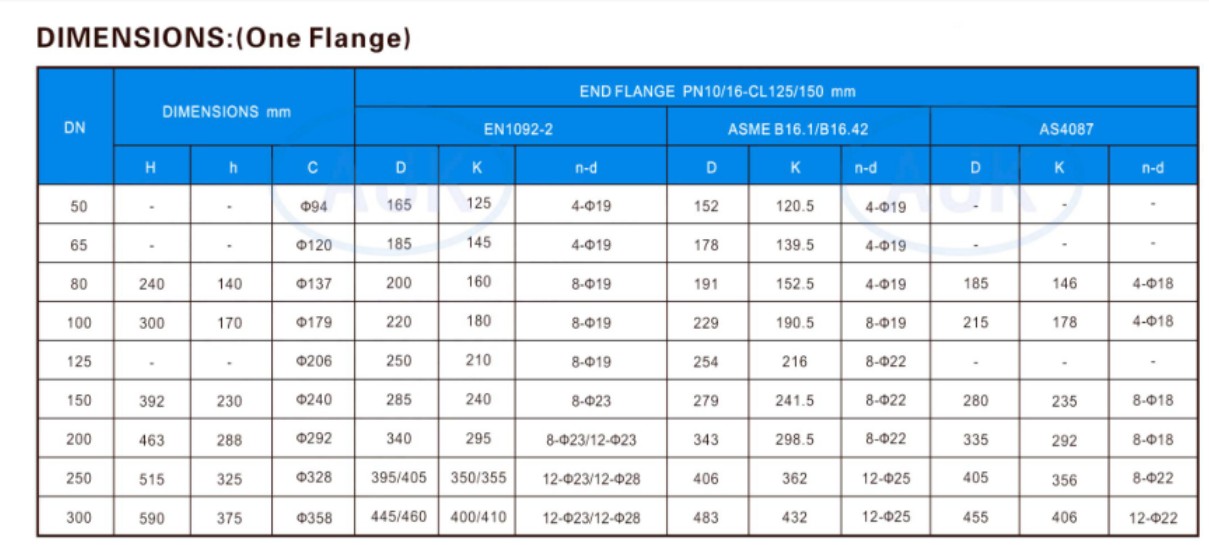

DIMENSIONS:(One Flange)
|
DN |
DIMENSIONS mm |
END FLANGE PN10/16-CL 125/150 mm |
||||||||||
|
EN1092-2 |
ASME B16.1/B16.42 |
AS4087 |
||||||||||
|
H |
h |
C |
D |
K |
n-d |
D |
K |
n-d |
D |
K |
n-d |
|
|
50 |
- |
- |
Φ94 |
165 |
125 |
4-Φ19 |
152 |
120.5 |
4-Φ19 |
- |
- |
- |
|
65 |
- |
- |
Φ120 |
185 |
145 |
4-Φ19 |
178 |
139.5 |
4-Φ19 |
- |
- |
- |
|
80 |
240 |
140 |
Φ137 |
200 |
160 |
8-Φ19 |
191 |
152.5 |
4-Φ19 |
185 |
146 |
4-Φ18 |
|
100 |
300 |
170 |
Φ179 |
220 |
180 |
8-Φ19 |
229 |
190.5 |
8-Φ19 |
215 |
178 |
4-Φ18 |
|
125 |
- |
- |
Φ206 |
250 |
210 |
8-Φ19 |
254 |
216 |
8-Φ22 |
- |
- |
- |
|
150 |
392 |
230 |
Φ240 |
285 |
240 |
8-Φ23 |
279 |
241.5 |
8-Φ22 |
280 |
235 |
8-Φ18 |
|
200 |
463 |
288 |
Φ292 |
340 |
295 |
8-Φ23
12-Φ23 |
343 |
298.5 |
8-Φ22 |
335 |
292 |
8-Φ18 |
|
250 |
515 |
325 |
Φ328 |
395/405 |
350/355 |
12-Φ23
12-Φ28 |
406 |
362 |
12-Φ25 |
405 |
356 |
8-Φ22 |
|
300 |
590 |
375 |
Φ358 |
445/460 |
400/410 |
12-Φ23
12-Φ28 |
483 |
432 |
12-Φ25 |
455 |
406 |
12-Φ22 |
