DI Foot Valve
发布时间：2022-05-20
点击人数：450次
INQUIRY NOW
|
Product Detail
Foot valve
Technical data
Size: 2"~12"
Working pressurer: 300psi
Flange standard: ASME-B16.1 Class125
Temperature range: 0-80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Bonnet |
Ductile iron |
|
Disc |
Ductile iron+EPDM |
|
Support |
Bronze/DI |
|
Shaft |
Stainless steel |
|
Spring |
Stainless steel |
|

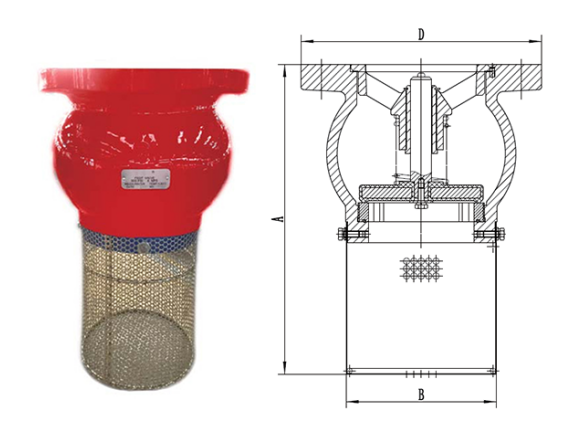

Dimension |
Pressure Rating |
Size(mm) |
|||
|
DN |
Inch |
PSI |
D |
A |
B |
|
50 |
2 |
300 |
152 |
153 |
83 |
|
65 |
2.5 |
300 |
178 |
195 |
103 |
|
80 |
3 |
300 |
191 |
237 |
120 |
|
100 |
4 |
300 |
229 |
295 |
143 |
|
150 |
6 |
300 |
279 |
431 |
196 |
|
200 |
8 |
300 |
343 |
574 |
248 |
