Flanged Y-type Strainer
发布时间：2022-05-20
点击人数：631次
INQUIRY NOW
|
Product Detail
APPLICATION
|
SIZE |
DN40-DN500 |
|
CLASS |
PN10/16 CL125/150 |
|
DESIGN |
HG/T 21637 |
|
FACETO FACE |
EN558,ASME B16.10 |
|
END FLANGE |
EN1092-2,ASME B16.1/16.42,AS4087 |
|
TESTS |
EN12266 |
MATERlAL LlST
|
STANDARD MATERIALS OF MAIN PARTS |
|||
|
ITEM |
PARTNAME |
MATERIAL |
STANDARD |
|
1 |
Body |
Ductile Iron |
DIN1693/BS EN1563 |
|
2 |
Screen |
X5CrNi18-10/SS304 |
EN 10088-1/ASTM A959 |
|
3 |
Cover |
Ductile Iron |
DIN1693/BS EN1563 |
|
4 |
Plug |
Brass/CS/SS |
EN10083-2/ASTM A959 |
|
5 |
Cover Gasket |
EPDM/NBR |
ISO 4633 |
|
Graphite with Soft Steel |
|
||
|
6 |
Bolt |
C45E/1045 |
EN10083-2/ASTM A29 |

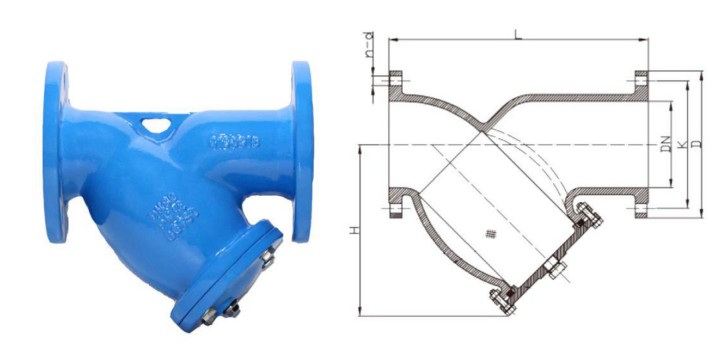

DIMENSIONS
|
DN |
OUTLINE mm |
END FLANGE PN10/16-CL 125/150 mm |
||||||||||
|
DIN-F1 |
BS2080 |
ASME B16.10 |
EN1092-2 |
ASME B16.1/B16.42 |
AS4087 |
|||||||
|
L |
D |
K |
n-d |
D |
K |
n-d |
D |
K |
n-d |
|||
|
40 |
200 |
- |
200 |
150 |
110 |
4-Φ19 |
127 |
98.5 |
4-Φ16 |
- |
- |
- |
|
50 |
230 |
220 |
225.4 |
165 |
125 |
4-Φ19 |
152 |
120.5 |
4-Φ19 |
- |
- |
- |
|
65 |
290 |
270 |
273 |
185 |
145 |
4-Φ19 |
178 |
139.5 |
4-Φ19 |
- |
- |
- |
|
80 |
310 |
290 |
292 |
200 |
160 |
8-Φ19 |
191 |
152.5 |
4-Φ19 |
185 |
146 |
4-Φ18 |
|
100 |
350 |
350 |
352.4 |
220 |
180 |
8-Φ19 |
229 |
190.5 |
8-Φ19 |
215 |
178 |
4-Φ18 |
|
125 |
400 |
390 |
416 |
250 |
210 |
8-Φ19 |
254 |
216 |
8-Φ22 |
- |
- |
- |
|
150 |
480 |
440 |
470 |
285 |
240 |
8-Φ23 |
279 |
241.5 |
8-Φ22 |
280 |
235 |
8-Φ18 |
|
200 |
600 |
540 |
543 |
340 |
295 |
8-Φ23
12-Φ23 |
343 |
298.5 |
8-Φ22 |
335 |
292 |
8-Φ18 |
|
250 |
730 |
660 |
660.4 |
395/405 |
350/355 |
12-Φ23
12-Φ28 |
406 |
362 |
12-Φ25 |
405 |
356 |
8-Φ22 |
|
300 |
850 |
720 |
762 |
445/460 |
400/410 |
12-Φ23
12-Φ28 |
483 |
432 |
12-Φ25 |
455 |
406 |
12-Φ22 |
|
350 |
980 |
- |
946.3 |
505/520 |
460/470 |
16-Φ23
16-Φ28 |
533 |
476 |
12-Φ28 |
525 |
470 |
12-Φ26 |
|
400 |
1100 |
- |
1079 |
565/580 |
515/525 |
16-Φ28
16-Φ31 |
597 |
540 |
16-Φ28 |
580 |
521 |
12-Φ26 |
|
450 |
1200 |
- |
1168 |
615/640 |
565/585 |
20-Φ28
20-Φ31 |
635 |
578 |
16-Φ32 |
640 |
584 |
12-Φ26 |
|
500 |
1250 |
- |
1275 |
670/715 |
620/650 |
20-Φ28
20-Φ34 |
699 |
635 |
20-Φ32 |
705 |
641 |
16-Φ26 |
