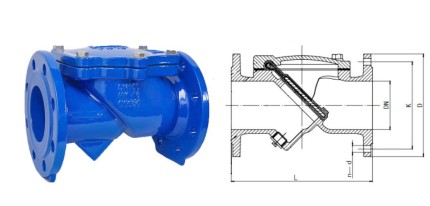

Flanged Flexible Check Valve
发布时间：2022-05-20
点击人数：510次
INQUIRY NOW
|
Product Detail
Flexible Check Valve
APPLICATION
|
SIZE |
DN50-DN800 |
|
CLASS |
PN10/16 CL125/150 |
|
DESIGN |
BS5153, MSS SP-71 |
|
FACETO FACE |
BS5153,ASME B16.10, DIN F6 |
|
END FLANGE |
EN1092-2,ASME B16.1/16.42,AS4087 |
|
TESTS |
EN12266 |
MATERlAL LlST
|
STANDARD MATERIALS OF MAIN PARTS |
|||
|
ITEM |
PARTNAME |
MATERIAL |
STANDARD |
|
1 |
Body |
Ductile Iron |
DIN1693/BS EN1563 |
|
2 |
Flapper |
WCB+EPDM |
ASTM A216/ISO4633 |
|
3 |
Bonnet Gasket |
EPDM |
ISO 4633 |
|
4 |
Bonnet |
Ductile Iron |
DIN1693/BS EN1563 |
|
5 |
Pin |
X20Cr13/420 |
EN10088-1/ASTM A959 |
|
6 |
Bolt |
C45E/1045 |
EN10083-2/ASTM A29 |
|
7 |
Washers |
C45E/1045 |
EN10083-2/ASTM A29 |
|
8 |
Nuts |
CS/DI |
EN10083-2/DIN1693 |
DIMENSIONS
|
DN |
OUTLINE mm |
END FLANGE PN10/16-CL 125/150 mm |
||||||||||
|
BS5163 |
ASME
B16.10 |
DIN-F6 |
EN1092-2 |
ASME B16.1/B16.42 |
AS4087 |
|||||||
|
L |
D |
K |
n-d |
D |
K |
n-d |
D |
K |
n-d |
|||
|
50 |
203 |
203 |
200 |
165 |
125 |
4-Φ19 |
152 |
120.5 |
4-Φ19 |
- |
- |
- |
|
65 |
216 |
216 |
240 |
185 |
145 |
4-Φ19 |
178 |
139.5 |
4-Φ19 |
- |
- |
- |
|
80 |
241 |
241 |
260 |
200 |
160 |
4-Φ19 |
191 |
152.5 |
4-Φ19 |
185 |
146 |
4-Φ18 |
|
100 |
292 |
292 |
300 |
220 |
180 |
8-Φ19 |
229 |
190.5 |
8-Φ19 |
215 |
178 |
4-Φ18 |
|
125 |
330 |
330 |
350 |
250 |
210 |
8-Φ19 |
254 |
216 |
8-Φ22 |
- |
- |
- |
|
150 |
356 |
356 |
400 |
285 |
240 |
8-Φ23 |
279 |
241.5 |
8-Φ22 |
280 |
235 |
8-Φ18 |
|
200 |
495 |
495 |
500 |
340 |
295 |
8-Φ23
12-Φ23 |
343 |
298.5 |
8-Φ22 |
335 |
292 |
8-Φ18 |
|
250 |
622 |
622 |
600 |
395/405 |
350/355 |
12-Φ23
12-Φ28 |
406 |
362 |
12-Φ25 |
405 |
356 |
8-Φ22 |
|
300 |
698 |
698 |
700 |
445/460 |
400/410 |
12-Φ23
12-Φ28 |
483 |
432 |
12-Φ25 |
455 |
406 |
12-Φ22 |
|
350 |
787 |
787 |
800 |
505/520 |
460/470 |
16-Φ23
16-Φ28 |
533 |
476 |
12-Φ28 |
525 |
470 |
12-Φ26 |
|
400 |
914 |
914 |
900 |
565/580 |
515/525 |
16-Φ28
16-Φ31 |
597 |
540 |
16-Φ28 |
580 |
521 |
12-Φ26 |
|
450 |
965 |
965 |
1000 |
615/640 |
565/585 |
20-Φ28
20-Φ31 |
635 |
578 |
16-Φ32 |
640 |
584 |
12-Φ26 |
|
500 |
1067 |
1067 |
1100 |
670/715 |
620/650 |
20-Φ28
20-Φ34 |
699 |
635 |
20-Φ32 |
705 |
641 |
16-Φ26 |
|
600 |
1219 |
1219 |
1300 |
780/840 |
725/770 |
20Φ31
20-Φ37 |
813 |
749 |
20-Φ35 |
825 |
756 |
16-Φ30 |
|
700 |
1448 |
- |
- |
895/910 |
840 |
24-Φ31
24-Φ37 |
- |
- |
- |
910 |
845 |
20-Φ30 |
|
800 |
1676 |
- |
- |
1015/1025 |
950 |
24-Φ34
24-Φ41 |
- |
- |
- |
1060 |
985 |
20-Φ36 |
