Rubber Seal Butterfly Valve
发布时间：2022-05-20
点击人数：431次
INQUIRY NOW
|
Product Detail
Wafer Butterfly Valve
Max working pressure
DN32-DN300 16Bar
Flange PN6 PN10 PN16 150LB JIS 5K 10K AS"D""E"
DN350-DN1200 10Bar
Flange PN6 PN10 PN16 150LB JIS 5K 10K AS"D""E"
Design
EN593 API 609 BS5155 EN1092 ISO5211
Face to Face
DIN558-1 API609 DIN3202 ISO5752 BS5155
Testing
EN 12266-1 ISO5208 API598
Body
|
Material |
References standard |
Coating |
|
Cast iron |
GG20 GG25 A126 |
Epoxy Ral 5005 |
|
Ductile iron |
GGG40 GGG45 GGG50 A536 A395 |
Epoxy Ral 5005 |
|
Carbon steel |
WCB WCC LCC LCB |
Epoxy Ral 7011 |
|
Stainless steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Aluminuim-bronze |
C95400 C95500 C95800 |
|
Disc
|
Material |
References standard |
Standard Coating |
|
Cast iron |
GGG40 GGG45 GGG50 A536 |
Nickel Brass-Nikle |
|
Ductile iron |
WCB WCC LCC LCB |
|
|
Carbon steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Stainless steel |
CF8 CF8M CF3 CF3M SAF2507 SAF2205 |
|
|
Aluminuim-bronze |
C95400 C95500 C95800 |
|

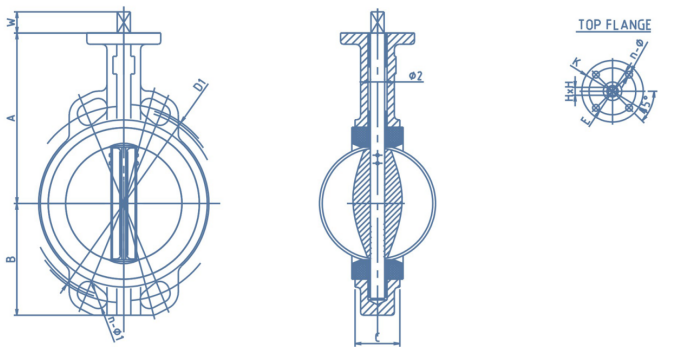

Wafer Butterfly Valve Drawing (DN50-DN350)
Outline Dimensions
|
SIZE |
A |
B |
C |
Φ2 |
ISO5211 |
K |
E |
n-Φ |
H×H |
W |
|
DN40 |
120 |
65 |
33 |
12.6 |
F05 |
65 |
50 |
4-7 |
9×9 |
14 |
|
DN50 |
140 |
80 |
43 |
12.6 |
F07 |
90 |
70 |
4-10 |
11×11 |
14 |
|
DN65 |
150 |
89 |
46 |
12.6 |
F07 |
90 |
70 |
4-10 |
11×11 |
14 |
|
DN80 |
158 |
95 |
46 |
12.6 |
F07 |
90 |
70 |
4-10 |
11×11 |
14 |
|
DN100 |
176 |
114 |
52 |
15.77 |
F07 |
90 |
70 |
4-10 |
11×11 |
14 |
|
DN125 |
190 |
127 |
56 |
18.92 |
F07 |
90 |
70 |
4-10 |
14×14 |
17 |
|
DN150 |
212 |
139 |
56 |
18.92 |
F07 |
90 |
70 |
4-10 |
14×14 |
17 |
|
DN200 |
236 |
174 |
60 |
22.10 |
F10 |
125 |
102 |
4-12 |
17×17 |
22 |
|
DN250 |
265 |
203 |
68 |
28.45 |
F10 |
125 |
102 |
4-12 |
22×22 |
22 |
|
DN300 |
305 |
242 |
78 |
31.60 |
F10 |
125 |
102 |
4-12 |
22×22 |
22 |
|
DN350 |
368 |
267 |
78 |
31.60 |
F10 |
125 |
102 |
4-12 |
22×22 |
22 |

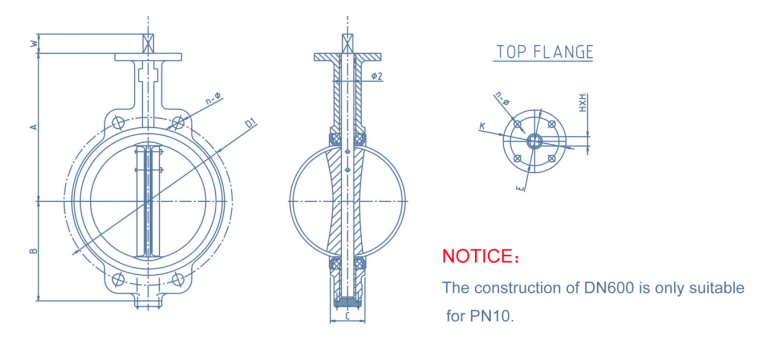

Wafer Butterfly Valve Drawing (DN400-DN600)
Outline Dimensions
|
SIZE |
A |
B |
C |
Φ2 |
ISO5211 |
K |
E |
n-Φ |
H×H |
W |
|
DN400 |
400 |
309 |
102 |
37.95 |
F14 |
175 |
140 |
4-18 |
27×27 |
36 |
|
DN450 |
422 |
340 |
114 |
37.95 |
F14 |
175 |
140 |
4-18 |
27×27 |
36 |
|
DN500 |
440 |
362 |
127 |
45.72 |
F14 |
175 |
140 |
4-18 |
36×36 |
36 |
|
DN600 |
565 |
452 |
154 |
50.62 |
F16 |
210 |
165 |
4-22 |
36×36 |
46 |

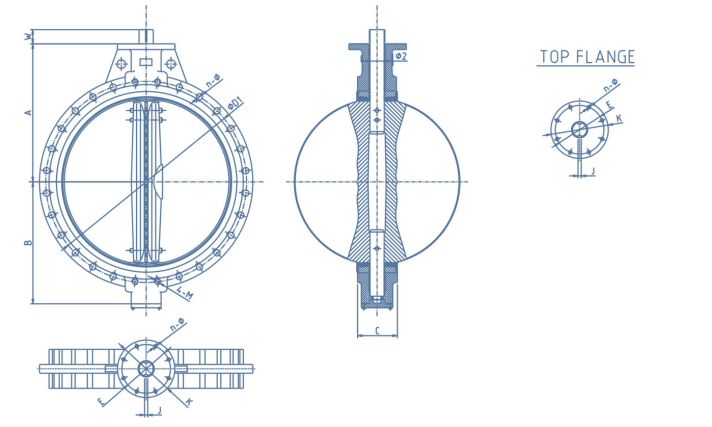

Wafer Butterfly Valve Drawing (DN700-DN1200)
Outline Dimensions
|
SIZE |
A |
B |
C |
Φ2 |
ISO5211 |
K |
E |
n-Φ |
J |
W |
|
DN700 |
631 |
511 |
165 |
63.35 |
F25 |
300 |
254 |
8-18 |
18 |
110 |
|
DN800 |
671 |
580 |
190 |
63.35 |
F25 |
300 |
254 |
8-18 |
18 |
110 |
|
DN900 |
720 |
636 |
203 |
75 |
F25 |
300 |
254 |
8-18 |
20 |
110 |
|
DN1000 |
805 |
709 |
216 |
85 |
F25 |
300 |
254 |
8-18 |
22 |
110 |
|
DN1200 |
942 |
846 |
254 |
105 |
F30 |
350 |
298 |
8-22 |
28 |
130 |
