Signal Grooved Butterfly Valve
发布时间：2022-05-20
点击人数：553次
INQUIRY NOW
|
Product Detail
Grooved Signal butterfly valve
Technical data
Sizs: 60.3~219.1
Working pressure: PN25, 362psi
Valve standard: MSS SP-67
Grooved standard: AWWA C606
Top Flange standard: EN ISO 5211
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Plug |
EPDM |
|
Driven shaft |
1Cr17Ni2 |
|
Disc |
Ductile iron and EPDM |
|
Actuating shaft |
1Cr17Ni2 |
|
Bearing bush |
Bronze |
|
O-rings |
EPDM |
|
Hand lever |
Ductile iron/steel |
|

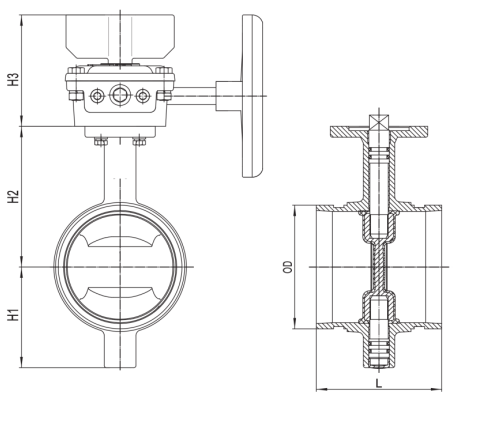

Dimensions |
Pressure rating |
Size(mm) |
||||||
|
DN |
Inch |
PN |
OD |
L |
H1 |
H2 |
H3 |
Top Flange |
|
50 |
2 |
10/16/25 |
60.3 |
81 |
56 |
91 |
103 |
F05 |
|
65 |
2.5 |
10/16/25 |
73 |
96.8 |
68 |
104 |
103 |
F05 |
|
76.1 |
||||||||
|
80 |
3 |
10/16/25 |
88.9 |
96.8 |
75 |
111 |
103 |
F07 |
|
100 |
4 |
10/16/25 |
114.3 |
115.8 |
93 |
130 |
103 |
F07 |
|
125 |
5 |
10/16/25
10/16/25 |
139.7 |
147.6 |
111 |
153 |
103 |
F07 |
|
141.3 |
111 |
153 |
||||||
|
150 |
6 |
10/16/25
10/16/25 |
165.1 |
147.6 |
123 |
165 |
103 |
F07 |
|
168.3 |
123 |
165 |
||||||
|
200 |
8 |
10/16/25 |
219.1 |
133.4 |
160 |
194 |
109 |
F07 |
