Rising-stem Grooved Gate valve
发布时间：2022-05-20
点击人数：490次
INQUIRY NOW
|
Product Detail

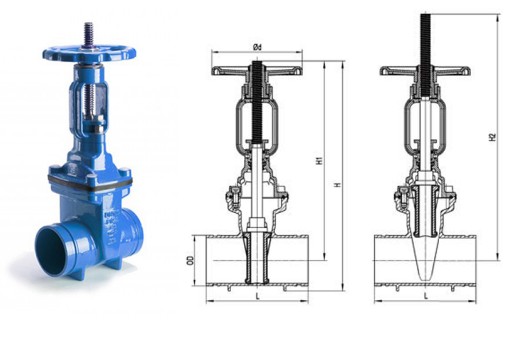

Resilient seated OS&Y gate valve-grooved end
Technical data
Sizs: DN50/DN60~DN200/219
Working pressure: PN25,362PSI
Valve standard: AWWA C515
Grooved standard: AWWA C606
Temperature range: 0 ~ 80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Wedge |
Ductile iron+EPDM |
|
Stem nut |
Bronze |
|
Stem |
SS431 or SS304,SS316,bronze |
|
Bonnet |
Ductile iron |
|
Bonnet Gasket |
EPDM |
|
Sealing Ring |
EPDM |
|
Yoke |
Ductile iron |
|
Sliding disc |
POM |
|
Screw |
Carbon steel with hot galvanization |
|
O-rings |
EPDM |
|
Hand wheel |
Ductile iron |
|
Dimensions |
Pressure rating |
Size(mm) |
||||||
|
DN |
Inch |
PSI |
ΦD |
L |
H1 |
H2 |
H |
Φd |
|
50 |
2 |
362 |
60.3 |
178 |
358.5 |
420.5 |
403.5 |
203 |
|
65 |
2.5 |
362 |
73 |
190 |
359.5 |
429.5 |
411 |
203 |
|
76.1 |
||||||||
|
80 |
3 |
362 |
88.9 |
203 |
378 |
462 |
437.5 |
203 |
|
100 |
4 |
362 |
114.3 |
229 |
449.5 |
553 |
518.5 |
203 |
|
125 |
5 |
362 |
139.7 |
254 |
549.5 |
677 |
631 |
254 |
|
141.3 |
||||||||
|
150 |
6 |
362 |
165.1 |
267 |
591.5 |
747 |
686 |
300 |
|
168.3 |
||||||||
|
200 |
8 |
362 |
219.1 |
292 |
735.5 |
938 |
865 |
330 |
|
250 |
10 |
362 |
273 |
330 |
890 |
1151 |
1051 |
406 |
|
300 |
12 |
362 |
323.9 |
356 |
1031.5 |
1341.5 |
1224 |
406 |
