Metal Seat Flange Gate Valve
发布时间：2022-05-20
点击人数：472次
INQUIRY NOW
|
Product Detail
Application
|
SIZE |
DN40-DN600 |
|
CLASS |
PN10/16 CL125/150 |
|
DESIGN |
EN1171,EN1074-2,AS2638 |
|
FACETO FACE |
EN558,ASME B16.10,AS2638 |
|
END FLANGE |
EN1092-2,ASME B16.1/16.42,AS4087 |
|
TESTS |
EN12266 |
MATERlALLlST
STANDARD MATERIALS OF MAIN PARTS
|
ITEM |
PARTNAME |
MATERIAL |
STANDARD |
|
1 |
Disc |
Ductile Iron |
DIN 1693/BS EN1563 |
|
2 |
Disc Ring |
Brass |
EN12167 |
|
3 |
Body Ring |
Brass |
EN12167 |
|
4 |
Body |
Ductile Iron |
DIN 1693/BS EN1563 |
|
5 |
Stem Nut |
CuZn39Pb1/C37000 |
EN12167/ASTMB135 |
|
6 |
Bonnet Gasket |
NBR |
ISO4633 |
|
7 |
Stem |
X20Cr13/SS420 |
EN10088-1/ASTMA959 |
|
8 |
O-Ring |
NBR |
ISO4633 |
|
9 |
Sealing Shim |
PVC-U |
|
|
10 |
Bolts |
C45E/1045/A2 |
DIN 1693/BSEN1563 |
|
11 |
Handwheel |
Ductile Iron |
DIN 1693/BSEN1563 |
|
12 |
Stud |
C45E/1045/A2 |
EN 10083-2/ASTMA29 |
|
13 |
Stuffing Box |
Ductile Iron |
DIN1693/BSEN1563 |
|
14 |
Stuffing Gland |
Ductile Iron |
DIN 1693/BSEN1563 |
|
15 |
O-Ring |
NBR |
ISO4633 |
|
16 |
Bonnet |
Ductile Iron |
DIN 1693/BSEN1563 |
|
17 |
Bolts |
C45E/1045/A2 |
EN 10083-2/ASTMA29 |
|
18 |
GaSket |
C45E/1045/A2 |
EN 10083-2/ASTMA29 |
|
19 |
NUt |
C45E/1045/A2 |
EN 10083-2/ASTMA29 |

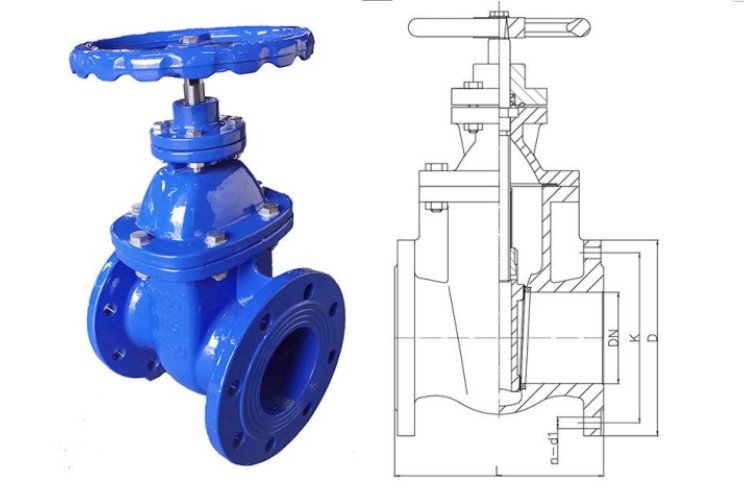

DIMENSIONS
|
DN |
OUTLINE mm |
END FLANGE PN10/16-CL 125/150 mm |
||||||||||||
|
BS5163 |
DIN F4 |
DIN
F5 |
ASME
B16.10 |
AS2638 |
EN1092-2 |
ASME B16.1/B16.42 |
AS4087 |
|||||||
|
L |
D |
K |
n-d |
D |
K |
n-d |
D |
K |
n-d |
|||||
|
40 |
165 |
140 |
240 |
- |
- |
150 |
110 |
4-Φ19 |
127 |
98.5 |
4-Φ16 |
- |
- |
- |
|
50 |
178 |
150 |
250 |
178 |
- |
165 |
125 |
4-Φ19 |
152 |
120.5 |
4-Φ19 |
- |
- |
- |
|
65 |
190 |
170 |
270 |
190 |
- |
185 |
145 |
4-Φ19 |
178 |
139.5 |
4-Φ19 |
- |
- |
- |
|
80 |
203 |
180 |
280 |
203 |
203 |
200 |
160 |
8-Φ19 |
191 |
152.5 |
4-Φ19 |
185 |
146 |
4-Φ18 |
|
100 |
229 |
190 |
300 |
229 |
229 |
220 |
180 |
8-Φ19 |
229 |
190.5 |
8-Φ19 |
215 |
178 |
4-Φ18 |
|
125 |
254 |
200 |
325 |
254 |
- |
250 |
210 |
8-Φ19 |
254 |
216 |
8-Φ22 |
- |
- |
- |
|
150 |
267 |
210 |
350 |
267 |
267 |
285 |
240 |
8-Φ23 |
279 |
241.5 |
8-Φ22 |
280 |
235 |
8-Φ18 |
|
200 |
292 |
230 |
400 |
292 |
292 |
340 |
295 |
8-Φ23
12-Φ23 |
343 |
298.5 |
8-Φ22 |
335 |
292 |
8-Φ18 |
|
250 |
330 |
250 |
450 |
330 |
330 |
395/405 |
350/355 |
12-Φ23
12-Φ28 |
406 |
362 |
12-Φ25 |
405 |
356 |
8-Φ22 |
|
300 |
356 |
270 |
500 |
356 |
356 |
445/460 |
400/410 |
12Φ23
12-Φ28 |
483 |
432 |
12-Φ25 |
455 |
406 |
12-Φ22 |
|
350 |
381 |
290 |
550 |
381 |
381 |
505/520 |
460/470 |
16-Φ23
16-Φ28 |
533 |
476 |
12-Φ28 |
525 |
470 |
12-Φ26 |
|
400 |
406 |
310 |
600 |
406 |
406 |
565/580 |
515/525 |
16-Φ28
16-Φ31 |
597 |
540 |
16-Φ28 |
580 |
521 |
12-Φ26 |
|
450 |
432 |
330 |
650 |
432 |
432 |
615/640 |
565/585 |
20Φ28
20-Φ31 |
635 |
578 |
16-Φ32 |
640 |
584 |
12-Φ26 |
|
500 |
457 |
350 |
700 |
457 |
457 |
670/715 |
620/650 |
20Φ28
20-Φ34 |
699 |
635 |
20-Φ32 |
705 |
641 |
16-Φ26 |
|
600 |
508 |
390 |
800 |
508 |
508 |
780/840 |
725/770 |
20Φ31
20-Φ37 |
813 |
749 |
20-Φ35 |
825 |
756 |
16-Φ30 |
