Flanged Y Type Strainer
发布时间：2022-05-19
点击人数：482次
INQUIRY NOW
|
Product Detail
Flanged Y Strainer
Technical data
Size: 2"~12"
Working pressurer: 300psi
Flange standard: ASME-B16.1 Class125
Temperature range: 0-80℃
|
Name of parts |
Material |
|
Body |
Ductile iron |
|
Cover |
Ductile iron |
|
Gasket |
EPDM |
|
Screen |
SS 304 |
|
Plug |
Bronze |
|

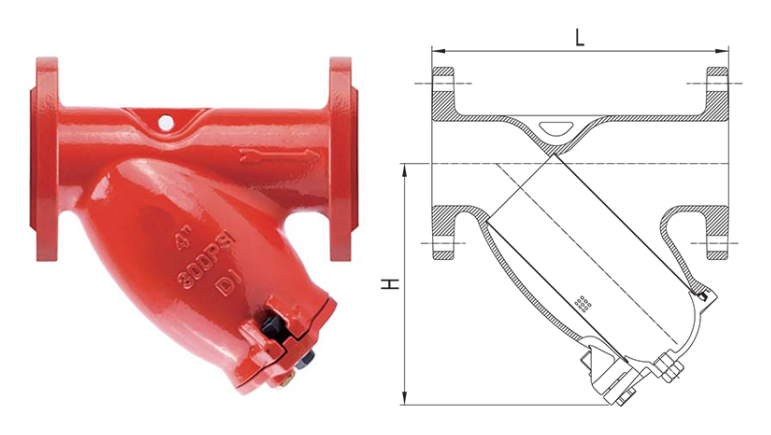

Dimension |
Pressure Rating |
Size(mm) |
|||
|
DN |
Inch |
PSI |
ΦD |
L |
H |
|
50 |
2 |
300 |
152 |
230 |
154 |
|
65 |
2.5 |
300 |
178 |
290 |
201 |
|
80 |
3 |
300 |
191 |
310 |
210 |
|
100 |
4 |
300 |
229 |
350 |
269 |
|
125 |
5 |
300 |
254 |
400 |
320 |
|
150 |
6 |
300 |
279 |
480 |
357 |
|
200 |
8 |
300 |
343 |
550 |
442 |
|
250 |
10 |
300 |
406 |
650 |
525 |
|
300 |
12 |
300 |
483 |
750 |
620 |
